Edge computing plays a key role in embedded IoT networks. Rising demands for computing power are pushing these solutions to the next generation. The new edge solutions require powerful computing capabilities, high bandwidth transmission, and information security. Advantech integrates embedded platforms with these featured technologies to help customers build reliable IoT Solutions.

MASS DATA
PROCESSING

Streaming data aggregate, analysis and transfer
HIGH NETWORK
BANDWIDTH

Reduce Data Transmission Time

SCALABILITY & EASY
DEPLOYMENT

Modularized Design for Quick Expandability
REMOTE
MANAGEMENT

Easy Accessibility and Operation

LOW
LATENCY

Time-Sensitive Communication

FEATURED TECHNOLOGIES

Server-Grade
Processor

Extreme high performance and multi-stream computing
- Intel® Xeon® up to 16cores
- Up to 256GB DDR4
High Bandwidth
Connectivity

Super speed data throughput with low latency transmission
- Up to 25 Gb Ethernet
- PCI Express Gen4
- USB4™
Advanced
Security

Highly integrated data encryption and security features
- Boot Guard
- Secure Boot
- TPM 2.0
- Intel® TME, SGX & TXT
Remote Edge
Management

System control, monitoring and OTA software update
- SUSI API & Utility
- BIOS OTA update
- WISE-DeviceOn
- IPMI (OOB)
Compact Form
Factor

Fast integration, better scalability and easy maintenance
- COM Express & COM-HPC
- Industrial motherboard mini-ITX
Rugged &
Reliable

Rugged design principles to ensure system stability in harsh environment
- -40 ~ 85 °C (-40 ~ 185 °F) operating temp.
- Anti-vibration: 7.7Grm
- Memory down / screwed Rugged SODIMM

INDUSTRIAL MOTHERBOARDS

Micro-ATX

Mini-ITX

Micro-ATX

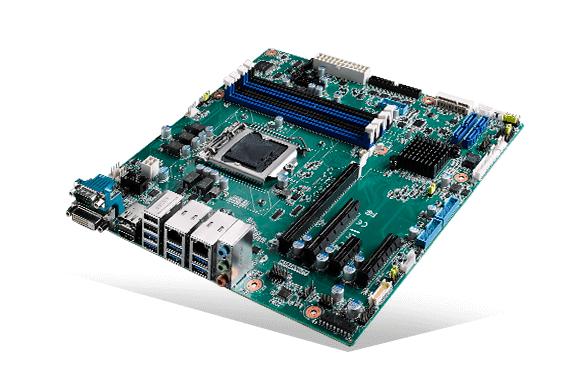

AIMB-585
- Intel® Xeon® E3 Processor
- Dual GbE LAN, triple display
- mPCIe for mSATA, WiFi module
- Software RAID 0, 1, 5, 10, TPM (optional)
Micro-ATX

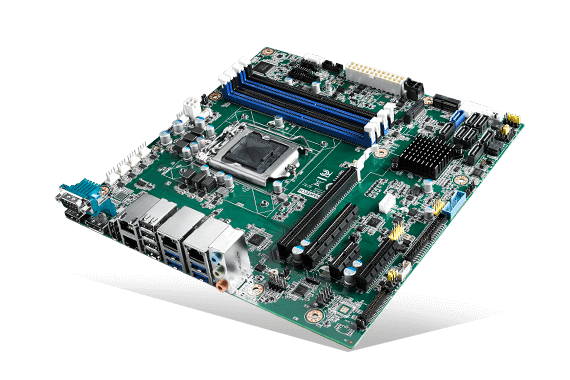

AIMB-586
- Intel® Xeon® E Processor
- PCIe x16 slot
- Four GbE LAN
- ATX or 12V DC-in power

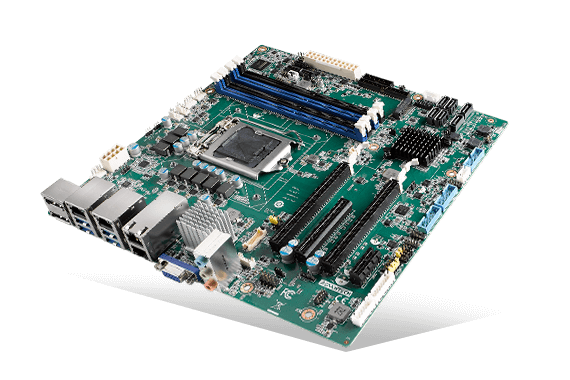

Micro-ATX

AIMB-587
- Intel® Xeon® W Processor
- Dual 10GbE & Dual GbE LANs
- M.2 M-Key for SSD
- Up to 16 USB ports
Mini-ITX

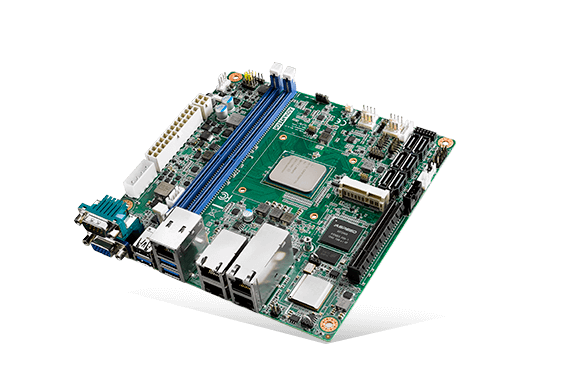

AIMB-290
- Intel® Atom® C3000 processor
- Dual 10GbE & Dual GbE LANs
- ATX or 12V DC-in power
- IPMI 2.0

COMPUTER ON MODULE

Type 6

Type 7

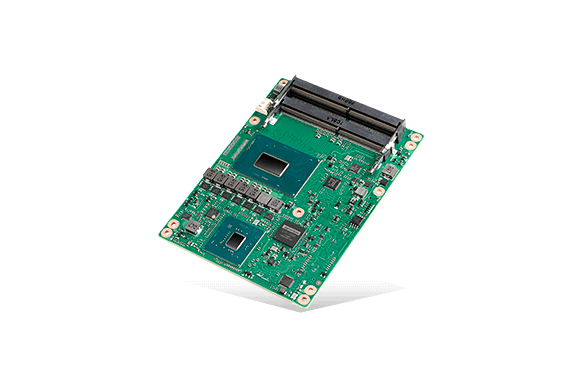

Type 6

SOM-5899
- 9th Gen. Intel® Xeon® E Processor
- Intel UHD P630 GPU
- 96GB DDR4 SODIMM
- 1 PEG gen3 x16 & 8 PCIe gen3 x1
Type 6

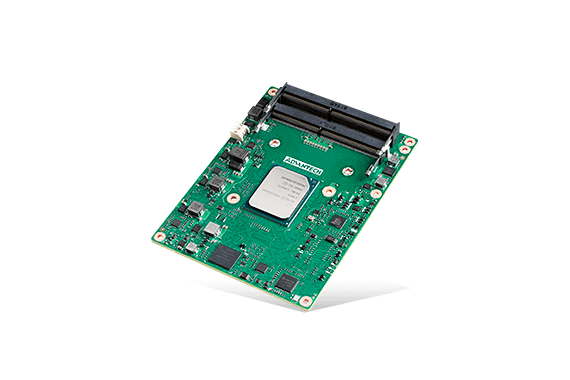

SOM-5962
- Intel® Atom® C3000 Processor
- 16Core, 128GB DDR4 SODIMM
- Quad 10GBASE-KR & 1GbE
- Rugged SODIMM, max. 64GB

Type 6

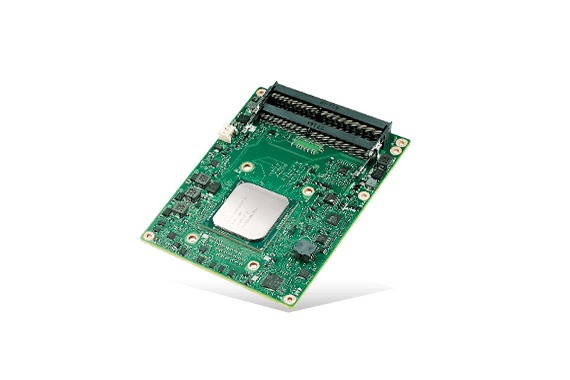

SOM-5992/5993
- Intel® Xeon® D Processor
- 16Core, 128GB DDR4 SODIMM
- Up to Quad 10GBASE-KR
- 32 lanes PCIe up to gen4 speed

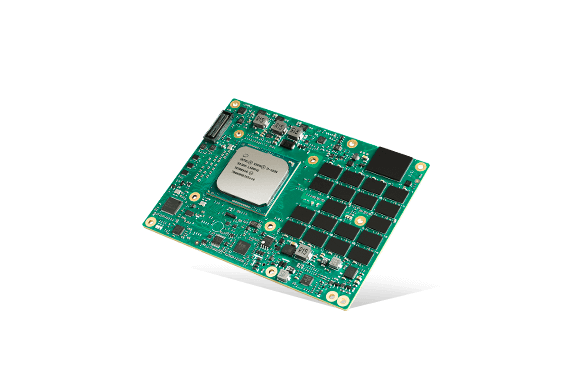

Type 7

SOM-9590
- Intel® Xeon® D Processor
- 16Core, 16GB DDR4 memory down
- Onboard TPM2.0, SSD storage
- MIL-STD-810G compliance

COM-HPC

Boost Performance With COM-HPC :
Join the Computer-on-Module Evolution

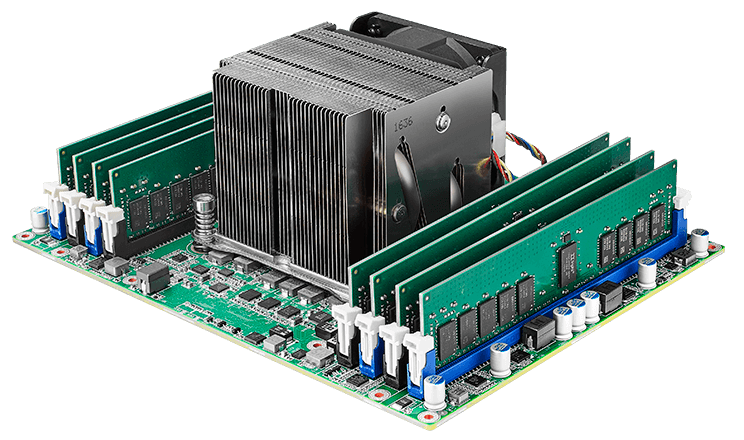

Advantech Evaluation Kit

16C/110W processor
512GB memory with 8pcs 288pin DIMM
45 lanes PCIe gen3 expansion
4 ports 10GBASE-KR & 1 port 1000BASE-T
Pinout: COM-HPC Server type
Size E 200 x 160 mm (7.87 x 6.29 in)

Learn More

Overview

Advantech’s COM-HPC is a evolutionary computer on module with excellent CPU performance. It features Super Speed interfaces, diverse pin definitions, a selection of board sizes, and brand new connectors. COM-HPC is aimed at complementing the full spectrum of COM express modules to meet performance demands for next generation edge computing solutions.

Server Pinout : board size D & E. Headless design and 25GBASE-KR with 4~8pcs DIMM
Client Pinout : board size A,B & C. Provides graphics and NBASE-T with 2~4pcs SODIMM

INDUSTRIAL PERIPHERALS

SQFlash

SQRAM

Windows

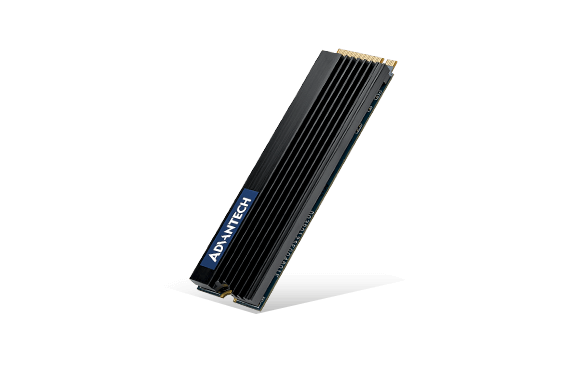

SQFlash

SQF-CM8 920 series
- PCIe Gen.3 x4, M.2 2280 NVMe SSD, upto 2TB
- Read/Write performance up to 3400/ 2700 MB/sec
- AES-256 & TCG-OPAL support, included LDCP & RAID ECC
- Support SQ Manager/DeviceON
SQFlash

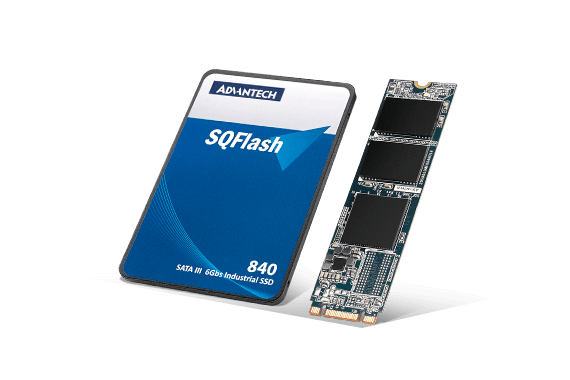

SQF-S25 840 series
- SATA 6Gb/s, 2.5” SATA SSD, upto 8TB
- AES-256 & TCG-OPAL support, includes LDCP & RAID ECC
- Support SQ Manager/DeviceON

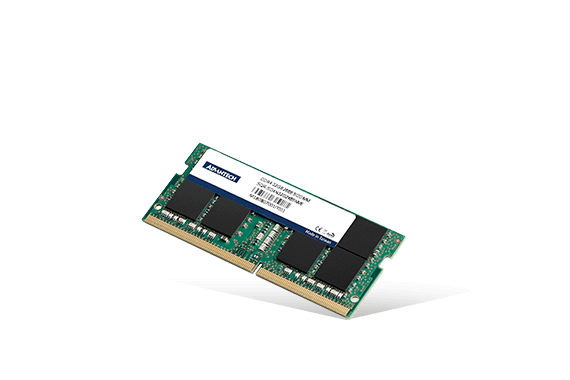

SQRAM

SQR-SD4(ECC)
- SODIMM DDR4 with ECC function support
- Outstanding speed 3200MHz
- High capacity up to 32GB
- Support temperature monitoring
Windows

Windows Server IoT 2019
- Enhanced security capabilities
- Unprecedented hyper-converged infrastructure
- Improved container for faster application building
Windows SQL Server IoT 2019
- Azure Machine Learning and Spark ML
- Intelligent database
- Encrypted with Secure Enclaves

Quadro Flow Cooling Solution

Slim, quiet, and powerful design features advanced high-efficiency cooling solution to enable extreme computing performance.

100% CPU Power
Silent Operation
Thin & Light
Easy Assembl

Learn More

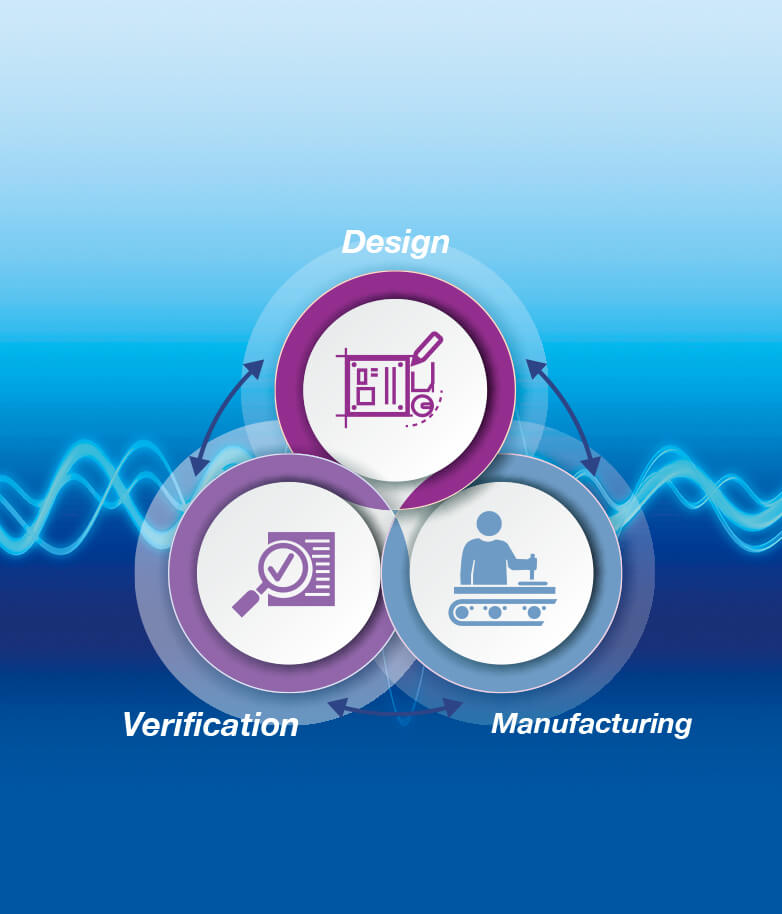

Advanced Manufacturing Process

Improving product quality by IPC-A-610G Class 3 certification.

Strict layout design & quality check
100% function check and visual inspection
Ability of IPC-A-610G class 3 manufacturing

Learn More

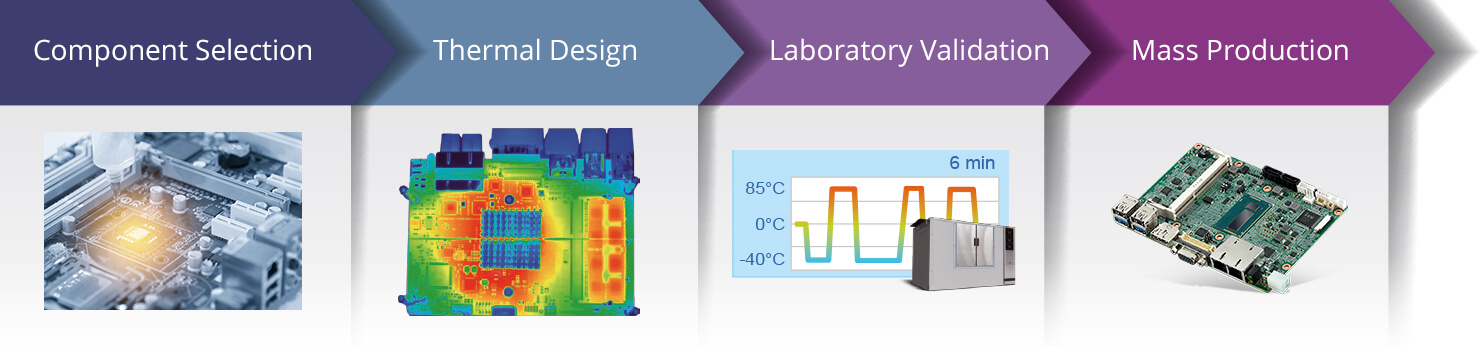

Wide Temperature Operation Services

Learn More

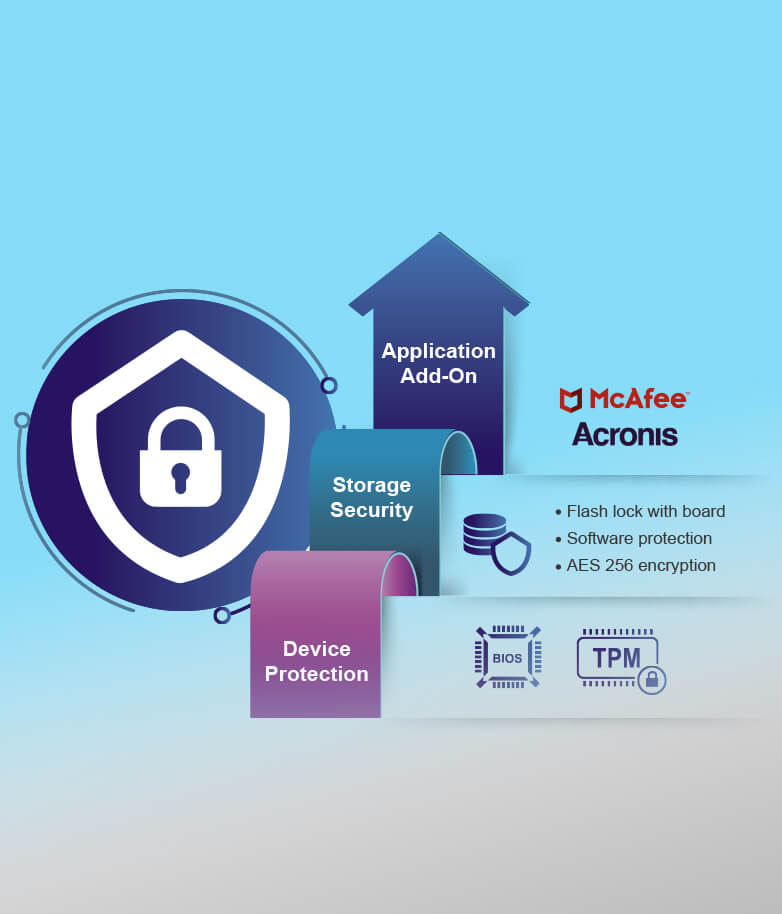

Multi-Layer Security Solutions

Effectively protect your solutions from devices to the cloud

Secure, backup, and recover software solutions
Centralized IoT device security management
Multi-function BIOS with security and boot management

Learn More

Anti-Vibration Solution & Service

MIL-STD-810 anti-vibration design, reliability enhancements, and strict verification

Key component soldiering, corner bonding capabilities.
Adhere to MIL-STD-810 test procedures
Optimized mechanical design and custom service

Learn More

Learn More about Embedded Design-in Service

APPLICATIONS

Diagnostic
Imaging
- PCI Express x16 slot
- Intel® Xeon® CPU
- ESD Level 4

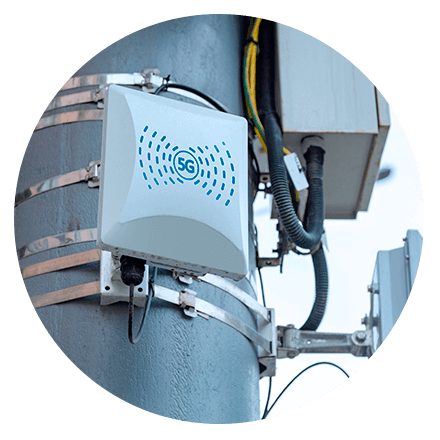

5G Micro
Cell Station
- Up to 16-core CPU
- Dual 10 Gigabit Ethernet
- Up to 512 GB memory

Surveillanc
- Four 10GbE LAN
- AI-enabled Video Analytics
- Virtual RAID on CPU
Outdoor Mobile
Server
- CPU, RAM and storage soldered down
- 10GBASE-KR
- T ambient: -40 ~ 85 °C

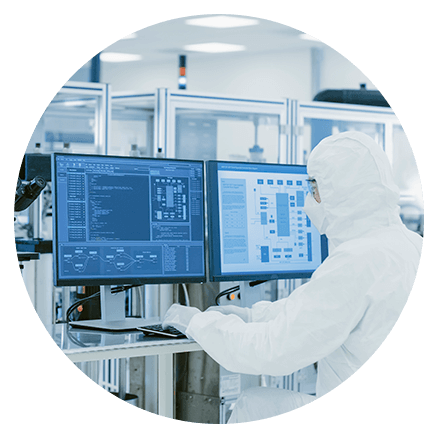

High Speed
Test Equipment
- Max. Intel® Xeon® 16C and 128GB memory
- PCIe Gen. 4 expansion
- Small FF & Low profile
